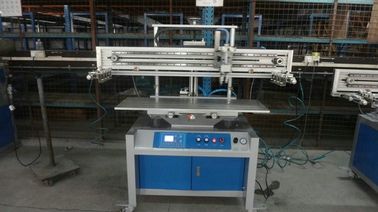

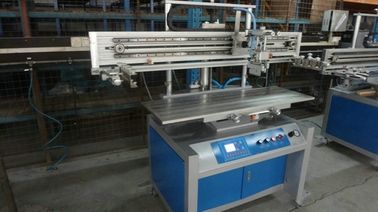

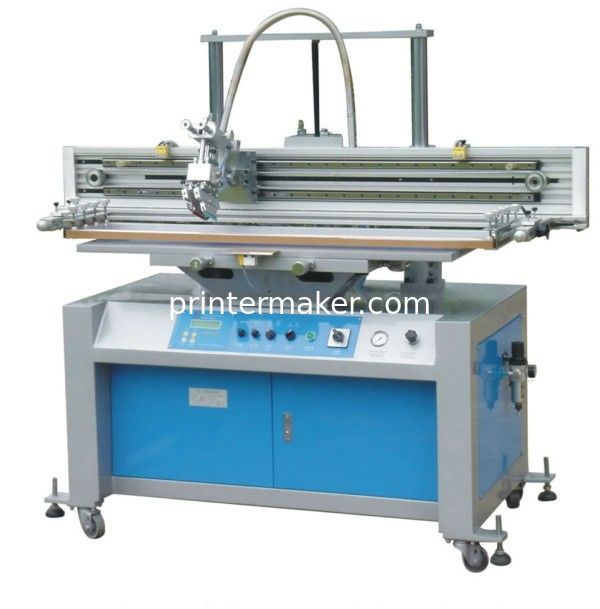

Flat Bed Screen Printer with Vacuum Table
Specifications:
1. Printing high:230mm;
2. Air :105Liter/Min;
3. Max printing area:300×1200mm;
4. Max Frame dimension: 350×1250mm;
5. Max printing speed:540PCS/hr ;
6. Max Stroke of up-and-down frame:200mm;
7. Max stroke od Squeegee:900mm.
8. Packing size:192*97*175CM
9.Gross Weight:587KG
Advantages:

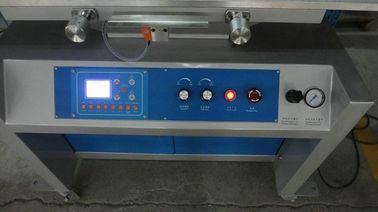

1.Fully automatic control by microcomputer & easy handling
2.Four figures automatic counter
3.Round printing function (taper section)
4.Automaticoil scrabbing, oil return and lifting table
5.Adujustability of routs and speeds
6.Self-poise scraper to balance printing pressure
7.Adjustable table and screen frame;
8.High precision and easy & quick adjustability ;
9. With vacuum table to fit printing soft and thin substrates
Application Scope:
Suitable for precise printing on any flat surface of various materials such as metal, plastic, ceramic,glass, wood etc..
Be widely used in electronic industry, advertising, packing & printing, sports equipment, toy, stationery, gifts, industrial arts fields etc..Printing objects such as decal, cards, transfer paper, paster, sticker, PVC/PET/PC films, metal nameplate etc which are made of non-deforming materials.
