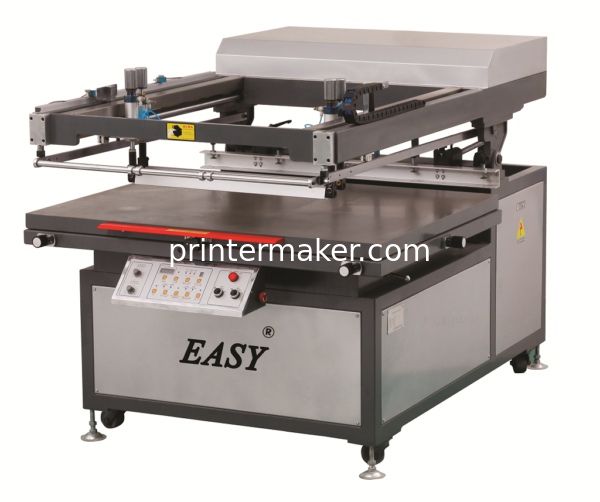

Tilted-arm Vacuum Table Screen Printer
Product Details:
| Place of Origin: |
China |
| Brand Name: |
easy |
| Certification: |
CE |
| Model Number: |
S-JY90120 |
Payment & Shipping Terms:
| Packaging Details: |
woodencase |
| Delivery Time: |
3 days |
| Payment Terms: |
TT |
| Supply Ability: |
1000PCS/Month |
| Minimum Order Quantity: |
1 PC |
Contact Now
Detailed Product Description
| High Light: |
Tilted-arm Vacuum Table Screen Printer, Screen Printer with vacuum table, flat screen printer with vacuum table |
Tilted-arm Vacuum Table Screen Printer
1. Working Table Size:1000*1300MM
2.Max printing area：900X1200MM;
3. Max. Screen Size:1200*1500
4. Min.Screen size: 650*700mm
6. Frame Lift Height: 300mm
7. Operation Air Pressure: 0.3 Mpa.--0.5Mpa.
8. Air consumptions(0.6 mpa): 13/pcs
9. Max.Product thickness:0-20 MM;0-50mm
10. Power rate: 2.3KW
11. Voltage: 220V/50HZ, single phrase
12. Table Height: 820mm
13. Max. printing speed. 500-1200pcs/Hour
14. Machine dimension:1800*1400*1300mm
15. Machine weight: 550Kg
