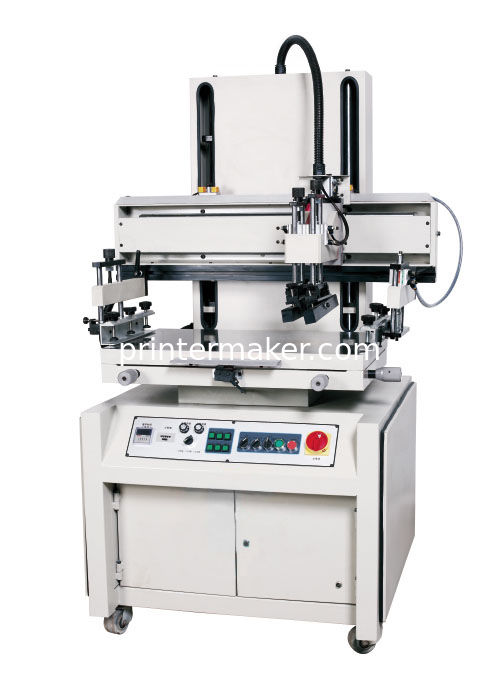

Flat Screen Printing Machine(400mm x 600mm)
This type of electric flat-bed vacuum screen printing machine is suitable for precise screen printing on substrates in PCB Board, Sheet, Film or Cube forms which with smooth flat surface and made of as metal, plastic, ceramic, glass, wood etc...
Feature
1. Vertical structure, Compact & space-saving. PLC control, easy operation and good stability. Language optional, English or Chinese.
2. Printing driven by motor, Installed Linear Guide or Linear Guideway. Printing speed and ink flooding speed are adjustable. Running smoothly and a long work life.
3. Special cushion cylinder installed on the left/ right buffer gear.
4. The motor drive screen frame up and down, two poles guide. Separated buffering air course to keep stability register.
5. Duralumin working table( made according to the international standard cast aluminium JISH5302-2000 ), precise scale micro-adjustable. Planeness keep in 0.05mm, roughness
6. Printing angle/ printing pressure and spacing between screen frame and table are adjustable.
7. Reliable safety device is installed according to CE standard.
8. Vacuum working function allow you for fitting thin products.
1:Max. printing area: 350*550mm
2:Size of printing table: 400*600MM
3:Thickness of printing objects: 0~100(mm)
4:Printing speed: 850-900pcs/h
5:Machine dimension(L * W * H):900*850*1750(mm)
6:Packing measurement: 1080*1030*1930(mm)
7:Net weight:400KG
8:Air consumption(Lcle):6.3
9:Power: 220V 650W
10:Packing: Wooden box
Price Terms : FOB Shenzhen or Guangzhou
Payment Terms : Western Union ,T/T or L/C
Packing : Wooden case
Lead Time : Within 3 days
Standards Certificate : ISO9001-2000,CE
Machine Fittings:
1.One aluminium screen flame
2.One Manual in English
3.One set of tool
Package List
Wooden case :
Model:1050×900×1550mm
Gross Weight: 350Kg
Ship Date
1.By sea
within 30 days after receive remittance
2.By air
within 6 days after receive remittance
Warranty
1.Cylinder can be changed for free within 1year,freight collect.
2.Other parts can be changed for free within 2years,freight collect.
3.Warranty period:3years
