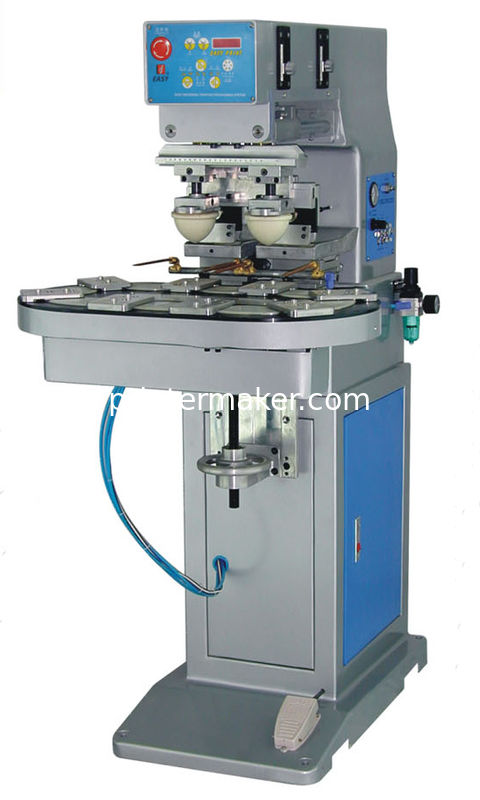

2-Colors Conver Belt Sealed Cup Pad Printer has 8 PCS printing position. It can print 8 PCS products and two colors at one cycle Specifications 1. Controlled by microprocessor, easy operation, running stably and accurately. 2. 4-digit auto counter built-in. 3. Cast aluminum machine frame, low weight and high intensity, turnable machine head. 4. Separate adjustment of the pad up/down stroke speed. 5. ink scraper is auto balance keeping in printing. 6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying. 7. Ink cup is turnable and adjustable in vertical and horizontal direction. 8. Super long slide stroke to print large size workpiece. 9. Speed of every single pneumatic organ is adjustabl
Specifications 1. Model No:P2-250C/8T 2. Operation: Pneumatic 3. Printing Colors: 2 4. Max. Printing area: 80x135 mm 5. Plate area: 100*250 mm 6. Sealed ink cup diameter: 60 or 90mm 7. Max printing speed: 1800PCS/H 8. Wattage: 220V/ 50Hz 110V/60Hz 9. Air pressure: 6 Bar 10. Machine size: 92×70×135cm 11. Machine weight: 150kg 12. Packing Size:106*86*151cm 13. Gross Weight:
Free Fitting: 1. Two PCS pad steel plate 2. Eight PCS silicone rubber pad 3. Eight PCS jig 4. Tooling box 5. Englishi specifications
Price Terms --FOB or CFR Payment Terms --T/T or LC Packing --Wooden case Lead Time ---5days after confirm PO SKU ---5-10sets Standards Certificate--- CE Main Parts SMC CYLINDER (MADE BY JAPAN)
