Single Color Pad Printer

Single Color Pad Printer

Single Color Pad Printer

Product Details:

Place of Origin: China
Brand Name: easy
Certification: CE
Model Number: P1

Payment & Shipping Terms:

Packaging Details: woodencase
Delivery Time: 3 days
Payment Terms: TT
Supply Ability: 1000PCS/Month
Minimum Order Quantity: 1 PC
Contact Now
Detailed Product Description
High Light:

Single Color Pad Printer

,

1 color pad printer

,

china best pad printer

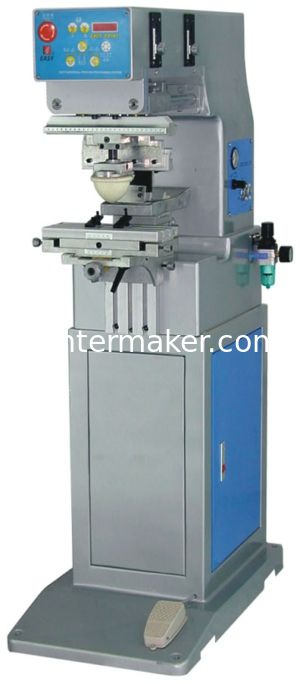

Single Color Pad Printer
Specifications︰
Model: P1
1.Max. plate size: 100x150 mm;
2.Max. worktable area: 300x115mm;
3.Max. printing area:85×130mm;
4.Max. printing speed: 1800pcs/hr;
5.Printable color quantity:1;
6.Air consumption: 110L/min(5bar);
7.Dimensions: 750x420x1350mm;
8.Weight: 95Kg.
9. Package dimension:810×510×1500mm;
10.Total weight:115KG.
11. Power Supply:220V/50HZ;110V/60HZ,60W
Model P1-150
1.Max. plate size: 150x150 mm;
2.Max. worktable area: 300x115mm;
3.Max. printing area:85×130mm;
4.Max. printing speed: 1800pcs/hr;
5.Printable color quantity:1;
6.Air consumption: 110L/min(5bar);
7.Dimensions: 750x420x1350mm;
8.Weight: 98Kg.
9. Package dimension:810×510×1500mm;
10.Total weight:119KG.
11. Power Supply:220V/50HZ;110V/60HZ,60W
Advantages︰
1. Microprocessor control for each function ;
2. 4-Digit auto counter built-in;
3. Coin aluminium structure ensures sturdiness;
4. ink roller used for ink applying ;
5. Independent stroke and speed adjustment for pad up/down;
6. Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;
7. Adjustable printing speed meets different printing requirements;
8. Ink roller keeps working while pad doesn't lower down avoid ink dry;
9. 1-pad plus 1-ink tray ;
10. One ink trays can be adjusted separately.
Machine Fittings︰
1.Two 4"*6" plates,
2.One pads
3.One blades
4.a tool box.
Machine Updated Description:
1: Ink tray system updated to ink well system for better environmental protection.
2: Ink tray could be widen to the size of 150*150mm, 300*150mm for bigger printing size.
3: Adding the shuttle working table for acted as two colors pad printer with shuttle.
4: Pneumatic double head pad printer needs two pieces of rubber pads, two pieces of steel plates, one set of tooling ( Be made based on provided sample)
5: Ink, Thinner (function as thinning the ink)
6. Equipped with SMC& Festo Pneumatic Parts
Application:
This pad printer is featured by the higher working capacity. It is also suitable for those products with high printing size requirements. The ink tray and rubber pads could be changed for multi color’s printing. Widely used for logo printing on surface such as electronic product
