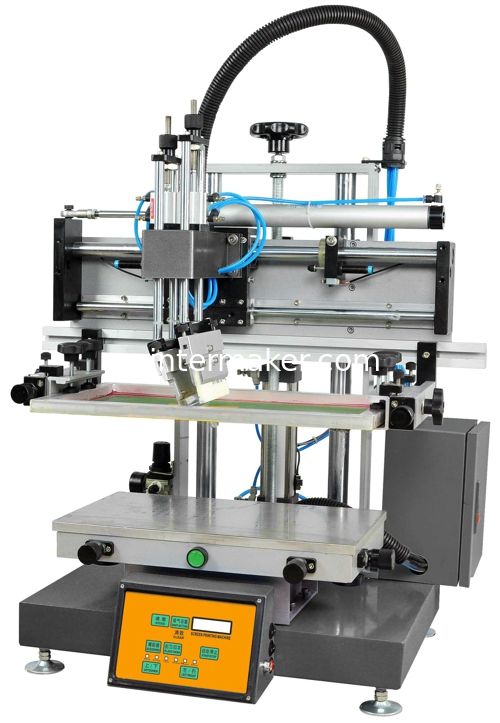

Mini Flat Screen Printing Machine with Vaccum Product Specification: 1:Mode:MSP-2030V 2:Print Area:200*300mm 3:Max height of printing products: 100mm 4:Worktable size: 250*450mm 5:Transeversa stroke: 350MM 6:Vertical stroke: 160MM 7:Print Speed:1200pcs/hour 8:Power:110/200V 50W 9:Machine Size:93*74*87CM 10:Packing size: 104*98*84CM(L*W*H) 11:Net Weight:125KG 12:Gross Weight: 175KG Features: 1. SCM IC coordinate light touching panel to complile action programming 2. Auto 4-digit counter built-in, counting printing quantity 3. Airframe adopts coin alloy,and metal coating surface 4. distyle vertical constructure, high precision, steady operation 5. the transeversa stroke can be adjusted, spacing by Taiwan electronic switch 6. the angle of scraper and ink covering blades can be adjusted randomly 7. installing scraper constant pressure equipment to make sure pressure is steady when printing 8. you can regulate work-table back and forth or right and left, and then fastening it 9. you can regulate screen frame back and forth, right and left or level orientatio 10. vacuum stainless steel worktable, it can absorb kinds of film products 11. installing CEC oil buffer on up and down, left and righ to avoid printing shock 12. The machine is running fastly, steably and lower noise. 13. Action model option: fully automatic | semi-automatic | manual 14. Start-up method:panel | foot switches 15. scraper pressure controller:by pressure regulating Valve 16. vertical driving style: pneumatic 17. transeversa driving style: pneumatic Application: The mini flat screen printing machine with vacuum table is adopted vacuum genertator to bring strong adsorptive power without noise. It replace manual screen printing, and solve the problems of un-stable printing quanlity, and slow printing speed by manual screen printing. The machine is small with quick speed, stable function, high precice, it can be made up of screen printing production line in small workshop. It’s special suitable for printing logo on the surface of PVC, paper, nameplate and kinds of film.
