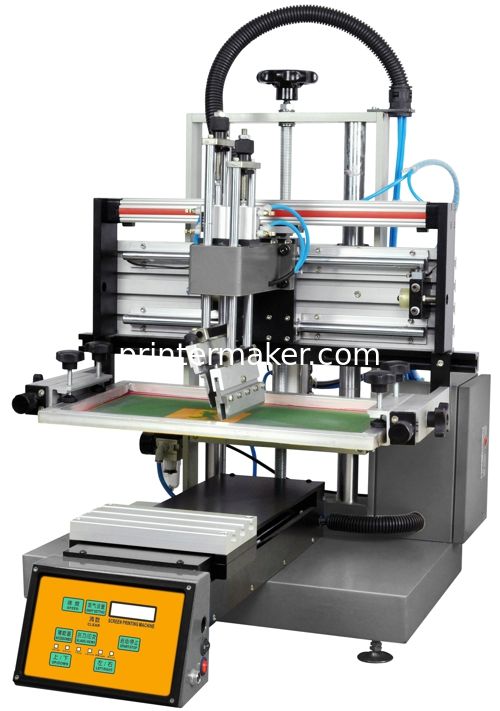

Pneumatic-Drive Flat Screen Printing Machine

Pneumatic-Drive Flat Screen Printing Machine

Pneumatic-Drive Flat Screen Printing Machine

Product Details:

Place of Origin: China
Brand Name: easy
Certification: CE
Model Number: MSP-2030P

Payment & Shipping Terms:

Price: USD2100
Packaging Details: woodencase
Delivery Time: 3 days
Payment Terms: TT
Supply Ability: 1000PCS/Month
Minimum Order Quantity: 1 PC
Contact Now
Detailed Product Description
High Light:

Pneumatic-Drive Flat Screen Printing Machine

,

desktop screen printer with moving table

,

mini screen printer

Pneumatic-Drive Flat Screen Printing Machine
Product Specification:
1:Mode:MSP-2030P
2:Print Area:200*300mm
3:Max height of printing products: 80mm
4:Pneumatic-drive vertical stroke: 300mm
5:Transeversa stroke: 350MM
6:Vertical stroke: 125MM
7:Worktable size: 250*450mm
8:Print Speed:1200pcs/hour
9:Power:110/200V 50W
10:Machine Size:105*81*90cm
11:Net Weight:125KG
Features:
1. SCM IC coordinate light touching panel to complile action programming
2. Auto 4-digit counter built-in, counting printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. distyle vertical constructure, high precision, steady operation
5. the transeversa stroke can be adjusted, spacing by Taiwan electronic switch
6. the angle of scraper and ink covering blades can be adjusted randomly
7. installing scraper constant pressure equipment to make sure pressure is steady when printing
8. you can regulate work-table back and forth or right and left, and then fastening it
9. you can regulate screen frame back and forth, right and left or level orientatio
10. vacuum stainless steel worktable, it can absorb kinds of film products
11. installing CEC oil buffer on up and down, left and righ to avoid printing shock
12. The machine is running fastly, steably and lower noise.
13. Action model option: fully automatic | semi-automatic | manual
14. Start-up method:panel | foot switches
15. scraper pressure controller:by pressure regulating Valve
16. vertical driving style: pneumatic
Application:
It is a mini pneumatic-drive flat screen printing machine. Front and back pneumatic-drive constructure design, it’s very convenient to put and take products. It can’t restric by the space of screen frame and worktable. It’s very suitable for printing logo on the surface of silicon rubber keypads, mobile key, and small mobile lens.
