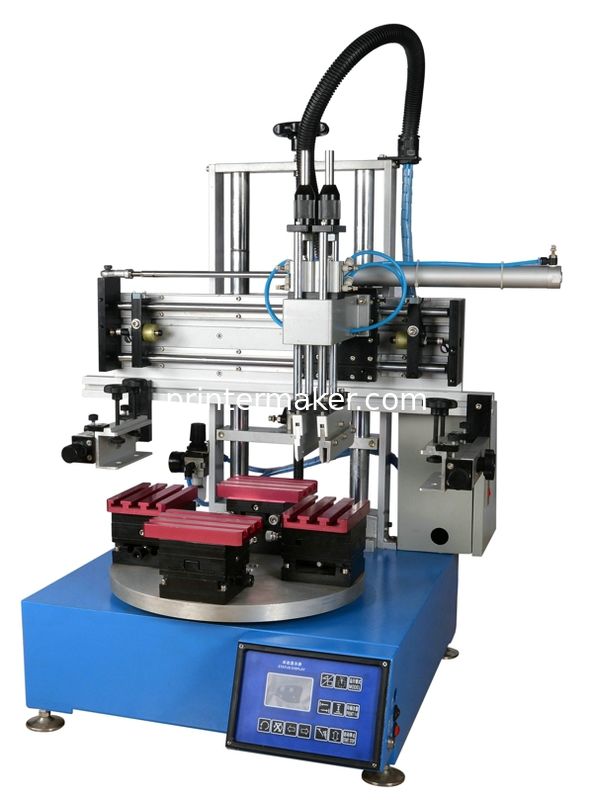

Tabletop Screen Printing Machine with Carousel Model: MSP-150 1.Max printing area: 110*150mm; 2.Worktable size: 120*120mm; 3.Transverse stroke: 400mm; 4.Vertical stroke: 100mm; 5.Rotray table diameter: 400mm; 6.Max height of product: 50mm; 7.Rotary table workstations: 2pcs/4pcs; 8.Packing Size:86*87*121CM 9.Gross Weight:120KG Application: Mini high speed rotary screen printer, using cam divider high speed rotary table, improving production. The speed is 2000pcs/hr. Printing, feeding and baiting at the same time with high speed and very stable function. It's a desktop style, easy to operate, suitable for printing the surface of mobile shell, lighter, plastic shell, metal shell etc flat products printing. Technical parameter: 1. IC with touch panel program action programming; 2. Aluminum casting body with metal coating; 3. Auto 4-digit counter, calculate printing quantity; 4. Double pillar up/dowm struture, making sure precision and stable; 5. Transverse stroke can be adjusted, using Taiwan sensor to limit; 6. Squeegee, flood bar can set as any angle; 7. Squeegee constant pressure, keeping printing pressure stable; 8. T-slot worktable, convenient to install jig; 9. Installing CEC buffer, making sure printing stable; 10. Action mode: auto | semi-auto | manual; 11. Start up: panel | pedal; 12. Squeegee pressure control: pressure regulating valve; 13. Vertical driven: pneumatic; 14. Transverse driven: electronic; 15. Max printing area: 110*150mm; 16. Worktable size: 120*120mm; 17. Transverse stroke: 400mm; 18. Vertical stroke: 100mm; 19. Rotray table diameter: 400mm; 20. Max height of product: 50mm; 21. Rotary table workstations: 2pcs | 4pcs;
