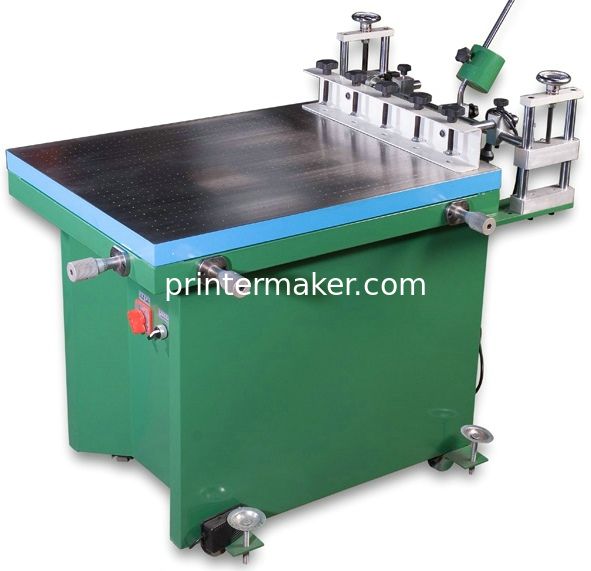

Vacuum Table Manual Screen Printer
Printing Substrate:The machine panel, plastic parts, Paper, furniture industry, glass
industry, circuit board industry, film, wooden case
Price Terms: FOB GuangZhou
Payment Terms: TT
Lead Time︰ Within 3 days.
Standards Certificate︰ CE
Voltage︰ 220V/50HZ 1 Phase
Colour︰ Green
Technical parameters︰
S-600M
1. Worktable area：500×650mm
2. Max printing area：450×600mm
3. Net weight：67kg.
4. Dimension：500×800×800mm。
5. Printing colour number： 1.
6. Opearting： manus
7. Max frame size: 700×900mm.
8. Movement characters: Manual
9. Working table type: Vacuum -type working table
10.Packing Size:1000*640*1050mm
11.Volume Weight:135KG
S-800M
1. Worktable area：600×800mm
2. Printing area：550×750mm
3. Net weight：70.5kg.
4. Dimension：700×950×800mm。
5. Printing colour number： 1.
6. Operating Method ： manual
7. Max Frame size: 800×1050mm.
8. Movement characters: Manual
9. Working table type: Vacuum -type working table
10.Packing Size:1100*740*1150mm
11.Volume Weight:187KG
Performance︰
1 Manus operating .
2. With vaccum worktable.
3. High precesion screen printing.
4. No need energy.
Features and Application︰
Inspiratory function of flat screen printing machine is suitable for easy printing process
go a bit thin products, such as: paper, PVC film, plastic film, textiles and other printing.
With manual operation, which will help the product to remove and place;
Bench grinding stainless steel countertops, suction uniform;
Widely used in paper packaging and mirror printing, glass printing, machine panel, sticker
printing, combined with a variety of processes, you can achieve a UV matte, UV Glitter, UV
partial varnish and coating processes. Also widely used in water transfer paper, heat
transfer paper printing.
