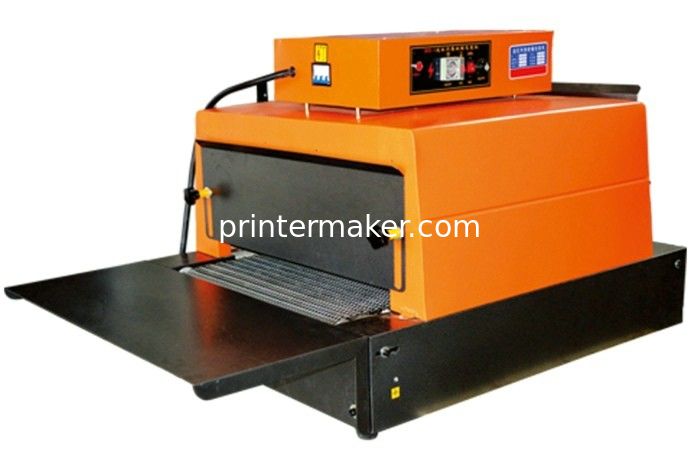

Infrared Tunnel Dryer For T Shirt Technical Parameters:
Supply Power:220/380V 50/60HZ
Power:7KW
Work Speed:0-12/Min
Temperature:0-300C
Load Weight:15KG
Drying Cabinet Size:800*400mm
Machine Size:1180*880*890mm
Net Weight:87KG
Gross Weight:98KG
Packing Size:1280*980*1130mm
Characteristics: 1.The machine adopts far-infrared heating tubes arrange uniformly in the oven.
2.The fan in the oven can ensure the temperature in the cabinet well distributed.
3.The machine adopts the electronic grade variable transmission,the speed of the motro is stable and adjutstable and adjustable,and the adjusting range is extensive,when the dry goods go through the 80cm drying tunnel,the slowest speed is up to 50-60seconds;
4.The machine can work continuously for more than 8 hours,long life,low noise.
5.There are special designed finishing platform at the entrance.And there are damper regulator at the entrance and exit,these can ensure the heat stablility.
6.The package is excellent.The machine adopts export level fumigation-free packing plate,the transportation is very convenient.
7.The Package is excellent.The Machine adopts export level fumigation-free packing plate,the transportation is very convenient.
8.The application is widely,and it can be applied to various need heating drying products.
