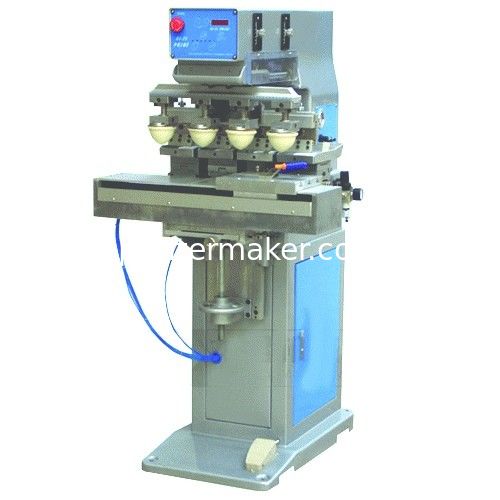

4 Color Pad Tampo Printing Machine with Shuttle ensures that is environmental, safe, it is comply with CE Starderand, ease operateing, to consume ink that frugal. Help to reduce any solvents evaporating from the ink too quickly and also helps to keep the ink at a constant temperature.
This item to fit pad printing plastic products, same as toyes, gift products, pen, PE products, golf ball package products, bos, , hosehold, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.
Specifications:
1. Model No:EP4/S-150
3. Operation:Pneumatic
4. Printing Station:1
5. Worktable area:90*125mm
6. Max Plate area:100*150mm
7. Max Printing area:80*130mm
8. Printing Speed:900CS/H
9. Power Support:110V/220V 50-60 MHZ
10. Air support:6 Bar
11. Dimensions:980*710*1420mm(LxWxH)
12. Weight(KG):170
Free match :
4 pcs steel pad plates.
4 pcs rubber pad
English operating instruction
Feature:
1. Four color printing with shuttle;
2. Microprocessor control with numerical display;
3. Automatic 5-digit counter installed;
4. With aluminum alloy frame, the machine is light and sturdy.
5. The speed and the vertical stroke of the pad can be adjusted independently;
6. The extra function "twice inking, once printing" is designed for thicker ink film;
7. For different requirements, the working speed can be adjusted;
8. With sealed cup to supply ink for keeping environment clean and save ink;
9.4-color, 3-color, 2-color, 1-color printing available,
10. The four ink cup can independently adjustable for color registration;
11. With air jet for fast dry in;
Price Terms:FOB GuangZhou
Packing:Wooden Case
Standards Certificate︰ CE
Application area:toies, pens, Cosmetics package box, hardware Parts.
Main Parts:Airtac MADE BY TAIWAN
H.S.Code:84439000
