Single Color Automatic Screen Printer Machine for Soft Tubes

Single Color Automatic Screen Printer Machine for Soft Tubes

Single Color Automatic Screen Printer Machine for Soft Tubes

Product Details:

Place of Origin: China
Brand Name: easy
Certification: CE
Model Number: STUV-01

Payment & Shipping Terms:

Packaging Details: woodencase
Delivery Time: 3 days
Payment Terms: TT
Supply Ability: 1000PCS/Month
Minimum Order Quantity: 1 PC
Contact Now
Detailed Product Description

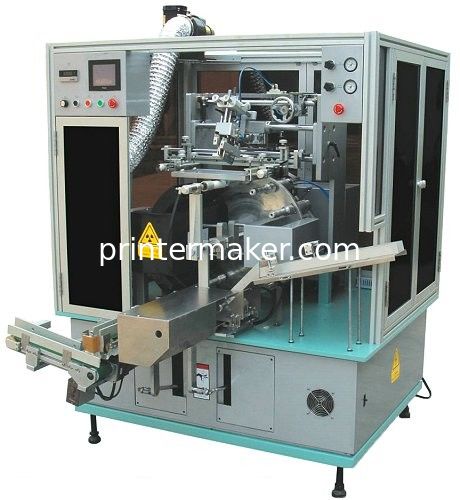

Single Color Automatic Screen Printer Machine for Soft Tubes
Specification:
Max. Speed:3000pph
Printing Area:236mmX170mm(ф75mm)
Printing products Size:28mm<Diameterф<75mm;20mm<Height <200mm
Number of Print Head:1
Number of UV System:1
UV Lamp Power:2.4kw
Electrical Requirement:380v 3phase 50/60Hz, 20A
Dimension (LxWxH):1850mmx1450mmx1700mm
Machine Weight:1120kg
Air Consumption:5-7bar 100 L/min
Power Consumptions:4.5kw

Advantages:
1.STUV-01 Auto Vertical Rotational UV Screen Printing Machine,which is special designed for the plastic soft tube, caps ,jars and cups and so on..

2..STUV-01 be designed compactly, built-in registration system(electable),UV curing system or heater(electable).Maximum printing speed is 3,600 pcs per hour.The configured systems:PLC and touch screen systems, auto feeding and downloading systems, flaming system(double torches for special PP plastic),mechanical synchronous drive system,“No-piece-No-printing”sensor, mechanical fixing system for printing.

3.STUV-01 be adopted the vertical rotating mechanical synchronous drive system,work-piece be rotated 360 degree to finish the printing; which becomes the high printing capacity line because the feeding system. The perfect design will satisfy many customers’ different requirement for the high quality products.
