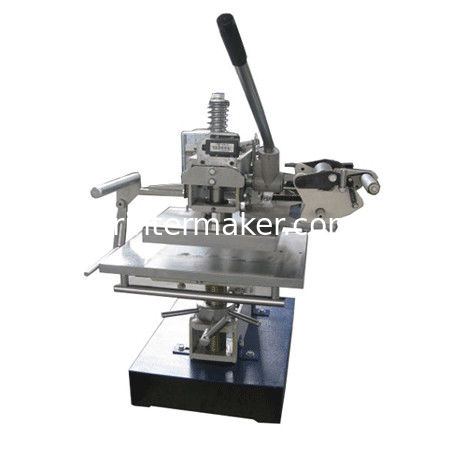

Manual Hot Stamping Machine
Specifications:
HS-95
1.Size of Hot Plate :95 × 180 mm
2. Work Table Size : 320×400 mm
3.Max. Pressure : 800Kg
4.Max. Head Stroke :40mm
5.Heater Capacity: 600 W
6. Foil Controller :motor Controller
7. Temperature adjustment :0-300oC
8. Packing Size: 64*74*94CM
HS-120
1.Size of Hot Plate :120 ×240mm
2. Work Table Size : 320×400 mm
3.Max. Pressure : 800Kg
4.Max. Head Stroke :40mm
5.Heater Capacity: 600 W
6. Foil Controller :motor Controller
7. Temperature adjustment :0-300oC
HS-100
1.Size of Hot Plate :100 × 300 mm
2. Work Table Size : 320×400 mm
3.Max. Pressure : 800Kg
4.Max. Head Stroke :40mm
5.Heater Capacity: 800 W
6. Foil Controller :motor Controller
7. Temperature adjustment :0-300oC
HS-190
1.Size of Hot Plate :190 × 270 mm
2. Work Table Size : 320×400 mm
3.Max. Pressure : 800Kg
4.Max. Head Stroke :40mm
5.Heater Capacity: 800 W
6. Foil Controller :motor Controller
7. Temperature adjustment :0-300oC.
Advantages:
1.Minimum air consumption;
2.Capable of adjusting the stamping pressure, the temperature and the speed;
3.Worktable capable of slight adjustment to rear-and-front, left-and-right and rotation;
4.The height of the stamping head adjustable accordingly;
5.Automatic foil feeding and rolling with adjustable function;
Machine Fittings:
1. Silicon rubber Edition one pic;
2. High temperature Paper one inch；
3. Stamping foil one roller；
4. One set tool.
Package List: 740 x 680 x8960 mm
Gross weight: 126kg.
