Cylindrical Hot Stamping Machine

Cylindrical Hot Stamping Machine

    • Cylindrical Hot Stamping Machine
    • Cylindrical Hot Stamping Machine
    • Cylindrical Hot Stamping Machine
  • Cylindrical Hot Stamping Machine

    Product Details:

    Place of Origin: China
    Brand Name: easy
    Certification: CE
    Model Number: H-360

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Packaging Details: woodencase
    Delivery Time: 3 days
    Payment Terms: TT
    Supply Ability: 1000PCS/Month
    Contact Now
    Detailed Product Description

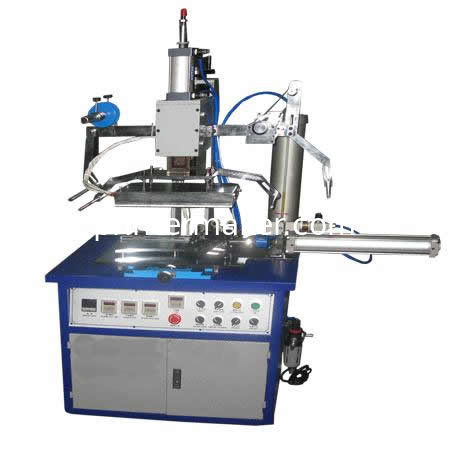

    Cylindrical Hot Stamping Machine
    Designed for cone cups to gild , Special curved conduit working table installed to ensure diffrent shape cups , Vertical pressure design ensure stabilitation stamping process. Widely used in the field of cosmetic package, Gifts, Toys etc.

    Price Terms︰ FOB GuangZhou
    Payment Terms︰ T/T, LC
    Packing︰ Wooden case
    Lead Time︰ Within 3 days
    Standards Certificate︰ ISO9001-2000
    Power Supply︰ 220V/110V/50HZ/60HZ/1-Phase
    Colour Painted ︰ White&Blue

    Specifications︰
    1.Size of stamping plate: 160×360 mm;
    2.Heater Wattage: 2000W;
    3.Stamping height adjustable range =80 mm;
    4.Max. stamping diameter: For whole circle: 90mm;
    5.Stamping temperature adjustable range: 0 - 300oC;
    6.Stamping foil pulling length: =400 mm;
    7.Stroke of stamping plate: 53 mm;
    8.Max. stamping pressure: 600 kgf (7bar);
    9.Max. stamping speed: 600 pcs/hr;
    10.Air consumption: 100 litre/min;
    11.Dimensions: 700 x 850 x 1600 mm;
    12.Weight: 175 Kg;

    Advantages︰
    1. Relay programmecontrol to operate ;
    2. Capable of adjusting the stamping pressure, the temperature and the speed;
    3. Temperature stabilization of temperture controller ensure stamping quality;
    4. Worktable slight adjustment ensure precision stamping;
    5. Automatic foil feeding and collecting;
    6. Safe protection device installed;
    7. The stamping head height adjustable;
    8. Special curved design to gild cone cups.
