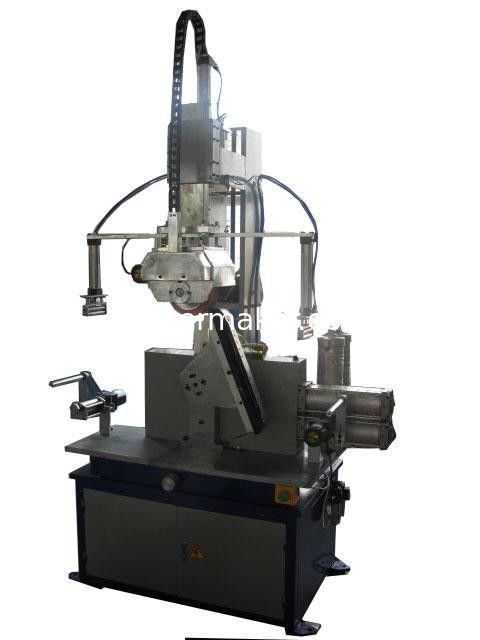

Imitat Hot Stamping Machine
Specifications︰
1. Size of heat plate: 90×180mm
2. Working table area: 210 x 200 mm
3. Max pressure:400 Kg
4. Up-and down distance: 75 mm
5. Heat wattage: 800 W
8. Foil feed: Motor Drive
9. Temperature range: 0 - 400oC
10.Net Weight :200 Kg
11. Outer dimension:1300 x 620 x 1430 mm .
Advantages︰
1.Microprocessor control (English/Chinese version switchable).
2.Rubber roller contacts uniformaty for large area transfer with substrates .
3.High precision photo sensor used to monitor and control the feeding of foil with dots .
4.Stamping head height is adjustable to meet the requirements for different substrates with various heights.
5.Auto foil feeding and collecting and the feeding length adjustable.
Machine Fittings︰
1. One foot stamping foil or heat trnasfer film;
2. Cylinder silicon roller one pcs;
3. Cylinder jig one set
4. Tool box one set.
Package List︰
Package dimension:1400×720×1480mm
Gross weight: 230KG
Ship Date︰
BY SEA:within 30 days after receive T/T.
Testing︰
1. 220v Power supply;
2. 5-7 bar compress air;
3. a jig for your products;
4. stamping plate or heat trnasfer paper
