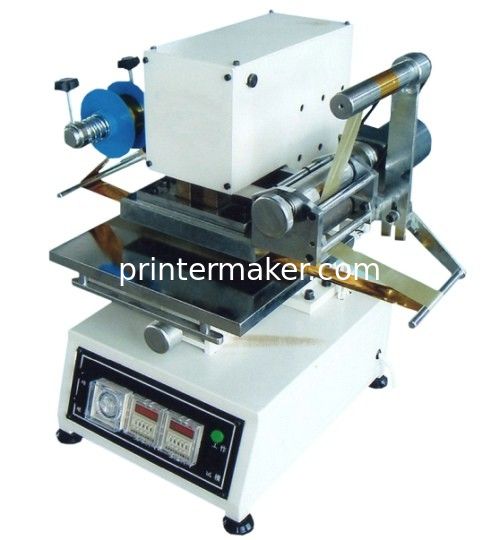

High Quality Tabletop Hot Stamping Machine
Price Terms:FOB GuangZhou
Payment Terms:TT/LC
Packing:Wooden case
Lead Time:Within 3 days
Usage:Fit stamping flat products such as: paper, plastics plate, leather etc. All process driven by Pneumatic to ensure stamping fast.
Temperature controlled automatically, Foil feeding automatically, Automatically stamping process;
Widely used in the field of Wooden, offices supplies, decorating materials , home appliances; Electron parts, Auto fitting etc.
Technical Parameter:
HST-80200
1.Size of stamping plate:80×200mm;
2.Stamping height adjustable range 35mm;
3.Size of working table: 280×250mm;
4.Stamping temperature adjustable range 0-280;
5.Max. stamping pressure 800kgf
6.Max. stamping speed:1300pcs/hr
7.Air consumption:80 liter/min
8.Heat Wattage:600W
9.Stamping foil pulling length: 250 mm
Model:HST-1020
1.Size of stamping plate:100×200mm;
2.Stamping height adjustable range:35mm;
3.Size of working table: 280×250mm;
4.Stamping temperature adjustable range:0－280;
5.Max. stamping pressure:800kgf
6.Max. stamping speed:1300pcs/hr
7.Air consumption:80 liter/min
8.Heat Wattage:600W
9.Stamping foil pulling length: 250 mm.
Model:HST-1520
1.Size of stamping plate:150×200mm;
2.Stamping height adjustable range:35mm;
3.Size of working table: 280×250mm;
4.Stamping temperature adjustable range:0－280;
5.Max. stamping pressure:800kgf
6.Max. stamping speed:1300pcs/hr
7.Air consumption:80 liter/min
8.Heat Wattage:600W
9.Stamping foil pulling length: 250 mm.
Production Advantage:
1. Table can be pulled into and pulled out the pick and place of convenience products;
2. Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
3. Table lifting screw adjustment, simple and convenient;
4. Relays for process control, stable operation, easy maintenance;
5. The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
6. leveraged cylinder pressure, the pressure is uniform and strong;
7. The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
8. Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
9. Using high strength steel, gilt plate and table, has a very high flatness;
10.Heating tube for heating, heat supply is stable, easy to replace.
11.Tabletop type Hot Stamping Machine.
Packaging Parameter:
Wooden Case:
Package size: 70*58*78CM;
Gross weight: 95kg.
