Transfer Printing Machine for Skateboard
Product Description

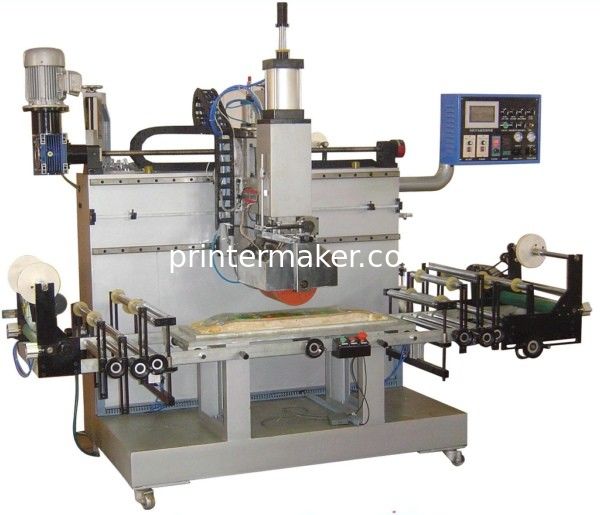

The automatical transfer printing machine features as below:
1. This hot transfer printing machine is specially designed for skateboard heat transfer;
2. It can feed and receive heat transfer film automatically;
3. The PLC system controller & electric eye sensor makes the machine has more precise of orientation;
4. The table of the machine is made by mould, which make it has more stability.
The manual heat transfer printing machine features as below:
1. This heat transfer printing machine is specially designed for skateboard;
2. This machine is not with PLC system controller, feed heat transfer film by hand;
3. The table of all of the machine is made by mould, which make it has more stablility
The relate parameters of the automatical transfer printing machine as below:
Model No:HT-PD2590Q-A
Max printing size:25cm ( width ) x 90cm ( length );
Max printing speed:20 m / minute
Machine dimension:250cm x 150cm x 190cm
Machine weight:700KG
Air pressure:0.5 - 0.7 Mpa
Heating power:2 KW
Temperature range:0 - 300'C
Packing size: 2150*1550*1950mm
The relate parameters of the manual heat transfer printing machine as below
Model No:GB-YD2590Q-A
Max printing size:25cm ( width ) x 90cm ( length );
Max printing speed:20 m / minute
Machine dimension:250cm x 150cm x 190cm
Machine weight:250KG
Air pressure:0.4 - 0.6 Mpa
Heating power:2 KW
Temperature range:0 - 300'C
