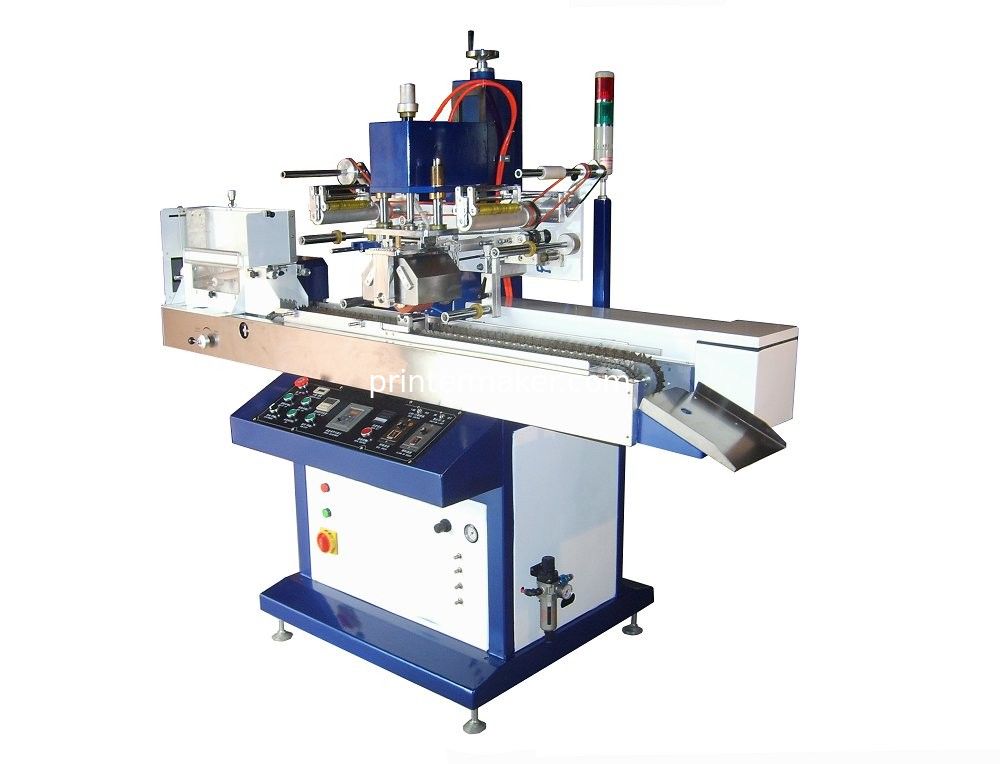

Automatic Pen Rod Heat Transfer Machine
Parameter:
1,Maximum Diameter:φ6～φ20 mm
2,Maximum length:60～160 mm
3,Transferring Stroke: 0～80 mm
4,Working Capacity: 2800 pcs/hr
5,Power supply: 220V 50/60Hz 2.5kw
6,Net Weight:480kg Gross Weight: 530kg
7,Outside Dimension: 2300×1750×830mm
Advantages:
1: Fully automatic feeding and loading system.
2: Gear rack way for assuring the stable and smooth feeding moving
3: Roller and transfer film are synchronous for distinguish wrinkle phenomenon.
4: Micro Adjustable heating plates
5: Machine’s structure are fitting for operation worker’s customs, more humanize.
6: Taiwan's balance torque converter control operation, to ensure consistent transfer effect
7: High working capacity at maximum 2800pcs per hour, bigger feeder for realizing no supervision
Application:
Widely fitting for transferring cylinder products such as pens, ball point pens, eyebrow pens, lid tubes etc
