LED UV Flatbed Printer

LED UV Flatbed Printer

LED UV Flatbed Printer

Product Details:

Place of Origin: China
Brand Name: easy
Certification: CE
Model Number: UFP-A3

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Packaging Details: woodencase
Delivery Time: 3 days
Payment Terms: TT
Supply Ability: 1000PCS/Month
Contact Now
Detailed Product Description

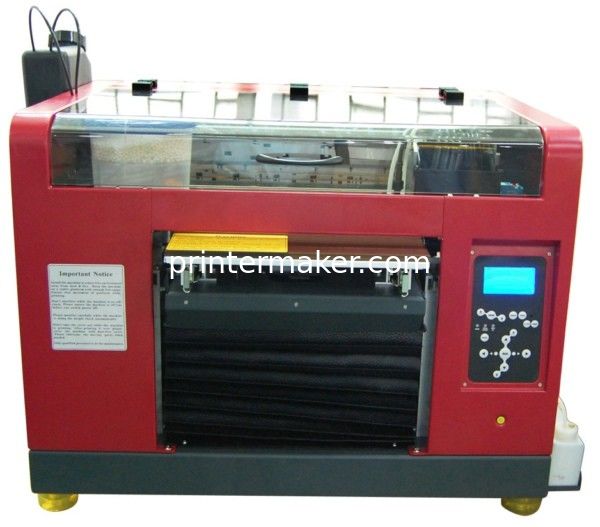

LED UV Flatbed Printer
LED UV Flatbed Printer

LED UV Flatbed Printer have opaque white ink performance for higher-quality printing on dark materials. Printing ink dry instantly,emboss output images with 3D effect,increase your products added value and give higher competitive ability in the market,while other printing technology can't.

Features of LED UV Flatbed Printer:
• LED UV curing technology
LED UV offers decisive energy savings, longer diode lifetime and a close to no VOC* emitting printing environment.
* VOC = Volatile Organic Compounds

• High-density Opaque White Ink
White UV Ink creates a very opaque image, allowing you to print vibrant colors onto virtually any colored or transparent substrate with 3D textured result.

• Photo quality printing
Equipped with EPSON printhead DX5 ,The LED uv printer realize the real photo printing quality with 5760*1440DPI.

• Automated White Ink Circulation System
Automated ink circulation system that prevents the pigment in white ink from settling. This system automatically reduces waste of white ink, lowers running costs, produces exceptional image quality, and ensures consistent white density throughout the longest production runs.

• Direct Printing onto materials
Because the integrated LED-UV lamp instantly cure ink during printing, The LED UV Flatbed can print directly onto materials such as PET, ABS, PVC, polycarbonate, PS and other plastics, as well as papers and card stocks.

Specification:

Model:UFP-A3
Print size:280mm*590mm
Printhead:Micro Piezo Inkjet 1440 Nozzles
Print color:C,M,Y,K,+4W
Print direction:Bi-Direction
Print speed:A3(1440dpi)/83s
Max. height of object: 17CM
Max.printing weight:Lossless Weight: 10KG; Loss: 5% 11-25KG
Max.printing resoultion:5760DPI
Ink tank volume:150ML
Ink: Environmental UV ink
Printhead protection:Intelligent self-protection system
Power supply:110-220V 50-60HZ 75W
Printing interface:USB2.0/IEEE1394
Operation system:Microsoft WindowsXP/7
Working Environment:Temperature 10-35°C relative humidity 20-80RH

LED UV
LED UV Sysetem: Six levels of adjustable system for different requirement
UV Lamp:100W
LED UV life pan:25000h

Software:Rip software
Net Weight:90KG
Goss Weight:110KG

Printer:900*750*600mm
Packing size:1150*1110*830mm
