    Product Details:

    Place of Origin: China
    Brand Name: easy
    Certification: CE
    Model Number: UV-4000S2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Packaging Details: woodencase
    Delivery Time: 3 days
    Payment Terms: TT
    Supply Ability: 1000PCS/Month
    Contact Now
    Detailed Product Description

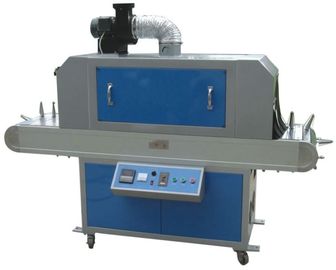

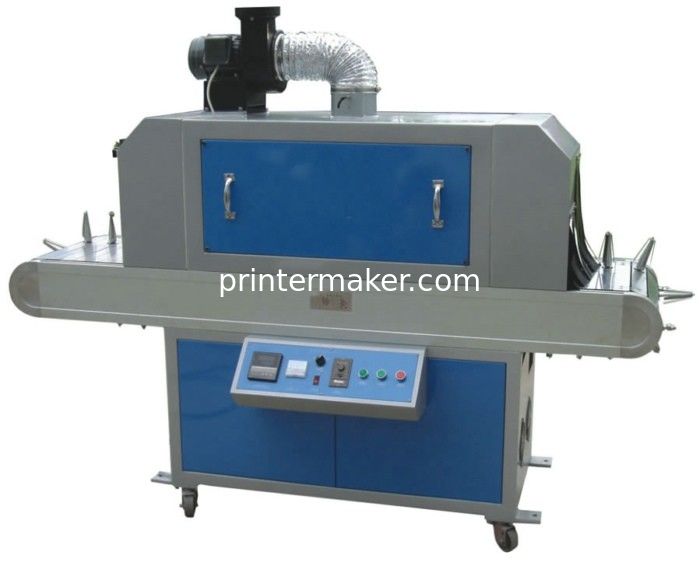

    Cylindrical UV Curing Machine
    Specifications:
    1.Max product height:20-320mm
    2.Max product width:400mm
    3.Conveyer size: 400x120mm(WxH)
    4.Bottle mouth diameter:Φ12-60mm
    5.Conveyer size:400mm
    6.Speed:1800~3000Pic/Hr
    7.Rout speed:0-10m/min
    8.UV lamp power:5Kw
    9.Machine power:7Kw
    10.Power supply:AC 380V/ 50Hz 3-Phase/220-240V,60HZ,3-Phase
    11.Machine size:2100x750x1810mm(LXWXH)
    12.Machine weight:353kg
    13.Packing Size:245*83*192CM

    Advantages:
    1.Suitable for the UV Ink printing cure on round,oval,flat bottles and cylindrical substrate.
    2.By adjusting its lighting angle, it can also be used in the UV ink printing cure of flat or curved substrate; 3.Enclosure construction with conveyor. Apply half light (3KW) or full light (6KW) tubes, the distance is adjustable;
    4.On the top of the machine equipped with an exhaust system, you can vent the inside heat of curing chamber .

    Product Description:
    The machine is suitable for drying and curing the round, oval plastic or glass bottles. It is widely used in the cosmestic, house hold product bottles final step printing curing. The tooling holder is removable so it is also suitable for flat products curing.



    UV Curing MachineUV Curing MachineUV Curing MachineUV Curing MachineUV Curing MachineUV Curing MachineUV Curing Machine
