    Product Details:

    Place of Origin: China
    Brand Name: easy
    Certification: CE
    Model Number: UV-4000S2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Packaging Details: woodencase
    Delivery Time: 3 days
    Payment Terms: TT
    Supply Ability: 1000PCS/Month
    Contact Now
    Detailed Product Description

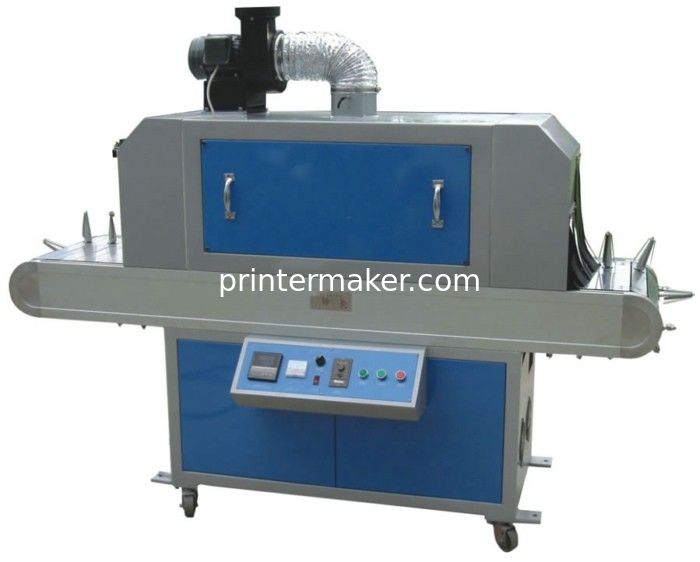

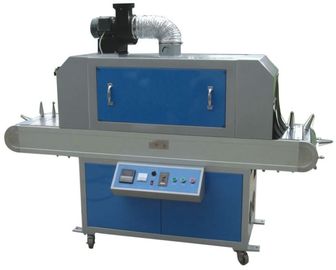

    Flat UV Curing Equipment
    Specifications︰
    1.Max product width: 400mm
    2.Max product length:320mm
    3.Printing speed :1800~3000Pic/Hr
    4.Conveyer speed: 0-10m/min
    5.UV lamp power:5Kw
    6.Total power: 7Kw
    7.Power supply :AC 380V/ 50Hz 3-Phase
    8.Machine size:(LxWxH)2100x750x1810mm
    9.Machine weight:353Kg
    10.Packing Size:245*83*192CM

    Advantages:
    1.Suitable for the UV Ink printing cure on round,oval,flat bottles and cylindrical substrate.
    2.By adjusting its lighting angle, it can also be used in the UV ink printing cure of flat or curved substrate;
    3.Enclosure construction with conveyor. Apply half light (3KW) or full light (6KW) tubes, the distance is adjustable;

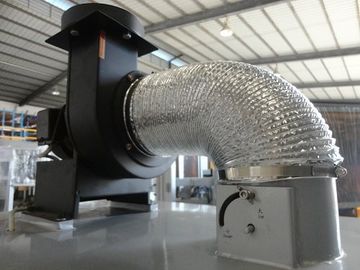

    4.On the top of the machine equipped with an exhaust system, you can vent the inside heat of curing chamber .
