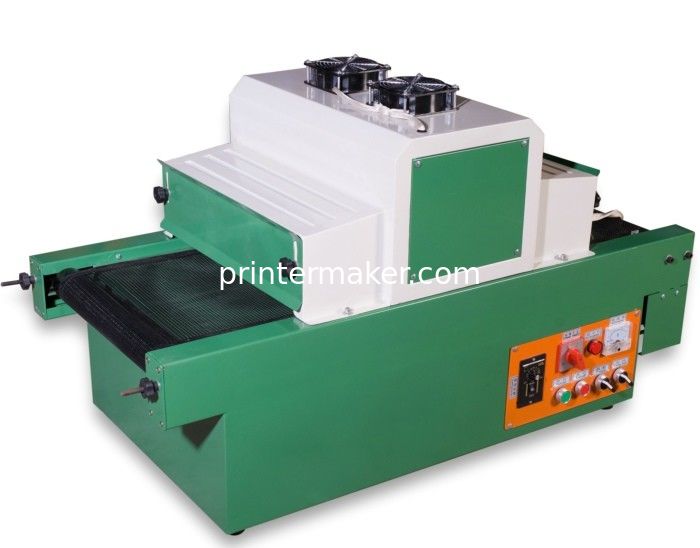

Tabletop UV Curing Unit

Tabletop UV Curing Unit

Tabletop UV Curing Unit

Product Details:

Place of Origin: China
Brand Name: easy
Certification: CE
Model Number: M-380UV

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: USD1200
Packaging Details: woodencase
Delivery Time: 3 days
Payment Terms: TT
Supply Ability: 1000PCS/Month
Contact Now
Detailed Product Description

Tabletop UV Curing Unit

1.Max Drying products size:380mm*1150mm(W*L)
2.Conveyor Size: 380*1150mm(1 lamp*2KW); 380*1250(2 Lamps*2KW)
3.Total wattage:2.15KW ;
4.Wind fan wattage:150W/220V
5.Conveyor motor wattage:4×25W/1P/220V
6.Conveyor speed:0~10m/min
7.Dimension:1250×550×660mm(l×w×h)
8.Gross Weight:230KG
9.Lamp wattage:1*2KW/220V(2*2KW optional).
10.Max height of products: 90mm.
11:Packing size: 1430*700*930mm

Advantages:

1. The conveyer speed can adjustment according to the products drying condition;
2. Conveyer belt mabe by tefulong materials;
3. Famous brand UV lamp installed ;
4. Cooling fan installed on the side to remove the heat in curing chamber;
5. Tabletop working and save room area


Description:

Drying for variety of UV screen printing, UV pad printing, spraying UV ink processing, such as UV varnish, frosted, wrinkle, brilliant, refraction, enclosure spraying, single/double-sided green oil.

This machine is maining for fast drying the UV ink , UV vanish by screen printing and pad printing, it is also used for all those UV related chemical materials surface drying. It is also could be connected with the offset UV printing machine.

Tabletop UV Curing UnitTabletop UV Curing UnitTabletop UV Curing Unit
