Place of Origin: | China |
Brand Name: | easy |
Certification: | CE |
Model Number: | F2 |
Minimum Order Quantity: | 1 PC |
---|---|
Packaging Details: | woodencase |
Delivery Time: | 3 days |
Payment Terms: | TT |
Supply Ability: | 1000PCS/Month |

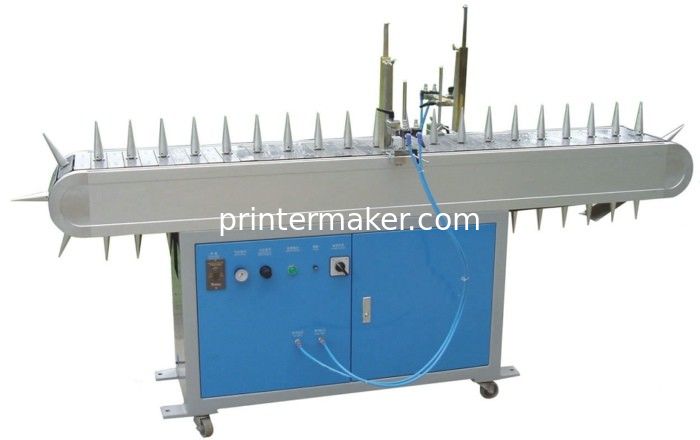

Flame Surface Treatment Equipment
Mainly used for pre-treatment of polyethylene and polypropylene plastic products. The better ink adhesion is available after the pre-treatment.
Cylinder bottles made by PP PE fit
Price Terms:FOB GuangZhou
Payment Terms:T/T. LC
Packing:Wooden case
Lead Time:Within 3 days
Standards Certificate:ISO9001-2000
Power Supply:220V/50HZ 1-PHASE
Colour Painted:Green
Specifications:
1.Flame width:Φ150*250mm
2.Burning Gas:LPG gas
3.Conveyor speed:0~10m/min
4.Outline dimension:2000X450X850mm
5.Conveyor size:2000X340mm
6.Combustion gas:Compressed air 8kg/cm2

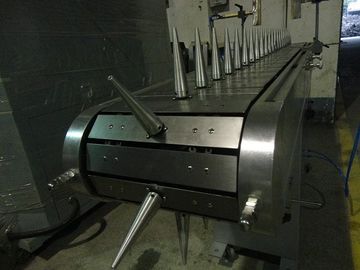

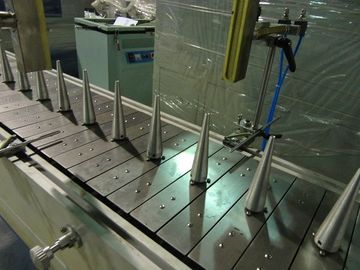

7. Rotating Length: 80CM, 9 Pieces of rotating tooling controlled by 9pcs of small gears and driven by a big gear.
8. Packing Size:244*65*110CM
Advantages:
1.Mainly used for the surface pretreatment of PE and PP plastic products.
2.Micro motor imported from Japan, stepless speed timing mode is adequate for different workpiece requirement.
3.The machine is two sides equipped with baffle-boards to improve the heat efficiency.
4.Advanced gushing nozzle is design generates a good combustion result, it is a product that saves energy.
5.According to the size of your product that is to be printed, replace the taper support to meet the different requirement of workpiece
Package List:
1. Dimension: 246×53×110CM
2. Gross weight; 120KG
