Screen Stretching Machine

Screen Stretching Machine

Screen Stretching Machine

Product Details:

Place of Origin: China
Brand Name: easy
Certification: CE
Model Number: 1600LW

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Packaging Details: woodencase
Delivery Time: 3 days
Payment Terms: TT
Supply Ability: 1000PCS/Month
Contact Now
Detailed Product Description

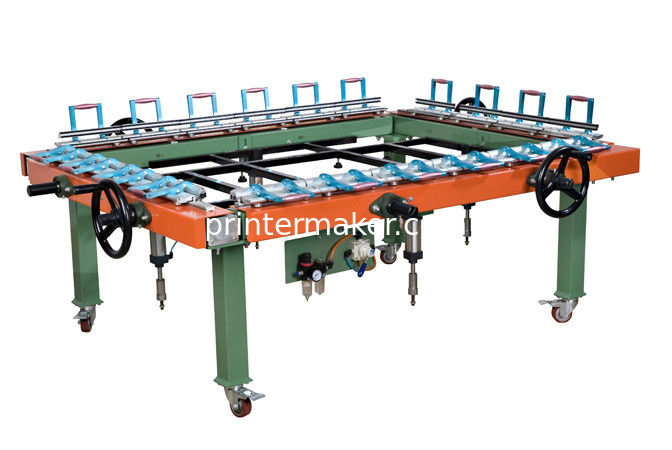

Screen Stretching Machine
The first step is tightened silk onto Screen frame made by Aluminium frame, Wooden Frame, Steel frame with Tighten silk machine; Air-controling to hold Metal shelf ensure contact compactly with silk surface ; Hand-wheel operated to make precision tension . Many frames to be tightened meantime ensure same silk tension and correct overprint.

Price Terms:FOB GuangZhou
Payment Terms:T/T. LC
Packing:Wooden case
Lead Time:Within 3 days
Standards Certificate:ISO9001-2000
Colour Painted:GREEN
Specifications:


M-1200LW:

1.Max tighten area:1000×1200mm.

2.Dimension:1200×1400×800mm.
3.Net weight:85kg.

4.Max silk tension:30N/CM.

M-1600LW:
1.Max tighten area:1200×1600mm.
2.Dimension:1300×1700×800mm.
3.Gross weight:270kg.
4.Max silk tension:30N/CM.
5. Packing Size:1800*1100*650mm

M-2200LW:
1.Max tighten area:1700×2200mm.
2.Dimension:1800×2300×800mm.
3.Net weight:400kg.
4.Max silk tension:30N/CM.

Advantages:
1. High strength frame made by aluminium alloy.
2. Easy to adjust tighten silk area by pushing and pulling leader of machine.
3. More uniformity tension to keep printing quality by air to raise up silk.
4. Hand draught silk so that get more propriety tension .

Ship Date:
by sea:
within 30 days after receive T/T.
Testing:5-7 bar compress air.
