Laser Imagesetter

    • Laser Imagesetter
    • Laser Imagesetter
    • Laser Imagesetter
    • Laser Imagesetter
  • Laser Imagesetter

    Product Details:

    Place of Origin: China
    Brand Name: easy
    Certification: CE
    Model Number: M-310SC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Packaging Details: woodencase
    Delivery Time: 3 days
    Payment Terms: TT
    Supply Ability: 1000PCS/Month
    Contact Now
    Detailed Product Description

    Laser Imagesetter
    Expert of output the film for pad printing; Small output dimension is more suitable for pad printing factory and small batch printing task.
    M Series Laser imagesetter is designed for direct printing users, which is characterized by being flexible and easy to use.
    This series adopt semiconductor lasers, which has a 100,000 hours long working life. And with image control technology, even if being amplified a hundred times, it can still guarantee a clear and sharp spot edge.This series of equipment also include RIP, which can directly output data from almost all the design software on PC & Mac, e.g. CorelDRAW, Illustrator, Photoshop, AutoCAD, FreeHand, etc.


    Price Terms:FOB GuangZhou
    Payment Terms:TT
    Packing:Wooden case
    Lead Time:Within 5 days
    Standards Certificate:ISO9001-2000
    Power Supply:220V/50HZ
    Colour Painted:Blue
    Specifications:

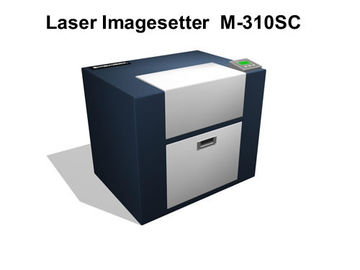

    M-310SC
    1. Max exports width: 310mm*Unlimited;12in.*Unlimited
    2. Output speed: 85mm/min;
    3. Resolution ratio: 3000DPI;
    4. Exposure Light: Semiconductor Laser
    5. Scan style: step;
    6. Repetition accuracy: 0.01mm;
    7. Film: Red laser phototypography film;
    8. Joint : USB 2.0;
    9. Works style: semi-auto operation in darkness room;
    10.operation environment : temperature10-30,humidity:20-80%.
    11.Spot size:8μm
    12.Dimension(L*W*H):660*500*550
    Application:High-precision screen printing such as hardware, watches,pad printing, shoe-making, signage,etc.

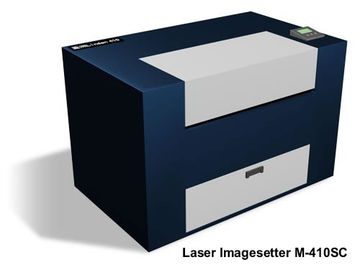

    M-410SC
    1. Max exports width: 410mm*Unlimited;16in.*Unlimited
    2. Output speed: 80mm/min;
    3. Resolution ratio: 3000DPI;
    4. Exposure Light: Semiconductor Laser
    5. Scan style: step;
    6. Repetition accuracy: 0.01mm;
    7. Film: Red laser phototypography film;
    8. Joint : USB 2.0;
    9. Works style: semi-auto operation in darkness room;
    10.operation environment : temperature10-30,humidity:20-80%.
    11.Spot size:8μm
    12.Dimension(L*W*H):800*500*550
    Application:High-precision screen printing such as hardware, watches,pad printing, shoe-making, signage,etc.

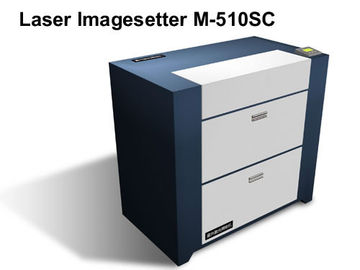

    M-510SC
    1. Max exports width: 510mm*Unlimited;20in.*Unlimited
    2. Output speed: 75mm/min;
    3. Resolution ratio: 3000DPI;
    4. Exposure Light: Semiconductor Laser
    5. Scan style: step;
    6. Repetition accuracy: 0.02mm;
    7. Film: Red laser phototypography film;
    8. Joint : USB 2.0;
    9. Works style: semi-auto operation in darkness room;
    10.operation environment : temperature10-30,humidity:20-80%.
    11.Spot size:8μm
    12.Dimension(L*W*H):900*600*1000
    Application:Screen printing such as pattern printing, ceramic decal paper and package

    M-660SC
    1. Max exports width: 660mm*Unlimited;26in.*Unlimited
    2. Output speed: 100mm/min;
    3. Resolution ratio: 1800DPI;
    4. Exposure Light: Semiconductor Laser
    5. Scan style: step;
    6. Repetition accuracy: 0.02mm;
    7. Film: Red laser phototypography film;
    8. Joint : USB 2.0;
    9. Works style: semi-auto operation in darkness room;
    10.operation environment : temperature10-30,humidity:20-80%.
    11.Spot size:14μm
    12.Dimension(L*W*H):1050*600*1000mm
    Application:Large width screen printing such as pattern printing and dye printing

    Advantages:
    1. semiconductor luminescence lamp-house;
    2. Flat operation mode;
    3. Expert image controlling technology;
    4. film store box aggregated storing, measuring ,cutting,feeding function installed;
    5. RIP 4.0 sent with machine, used both PC AND MAC system;
    6. design for pad film ouput.

    Machine Fittings:
    1.RIP Document for Output
    2.Safe Light of dark room;
    3.Output Line 5 meters;
    4.Develop powder and Fixation powder 1 bag

    Package List:
    Package Dimension: 750×550×450mm;
    Gross weight: 40Kg.

    Testing:
    1.Computer
    2.Dark troom;
    3.Devellopping, Fixation and washing Process
