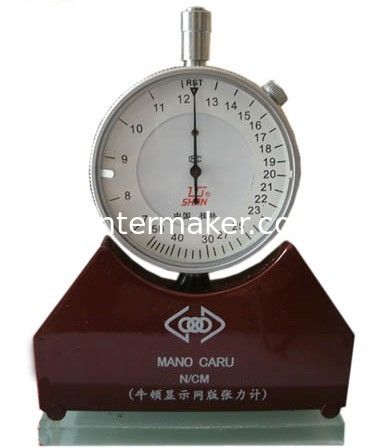

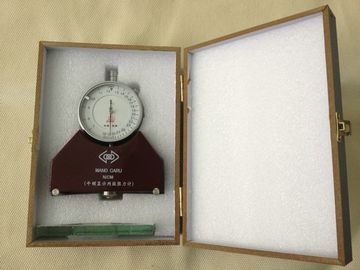

Tensiometer For Mesh Stretching
provides a reliable,simple means of checking fabric tension in either direction of weave, with the tension indaicated directly
1.A precision measuring instrument
2.Shock protection The AIGU comes equipped with a shock Absorber as a standard feature. This greatly reduces damages due to impact(as a result of dropping the instrument or incorrect use).
3.Measuring range Fast means of checking fabric tension in either direction of weave. It completely eliminates the errors which inevitably arise when screens are tensioned by feel and checked by hand. Mesh Type Print duties type Tension force(N/cm) Super intensity silk mesh Circuit board and quality scale plate 16.0-20.0 High intensity silk mesh Multiple colors CMYK overprint machine 16.0-20.0 High precision silk mesh High precision multilayer circuit board 25.0-30.0 High precision polyester silk mesh Multiple colors or CMYK overprint 8.0-12.0 Common polyester silk mesh Level off objects 8.0-12.0
The Tensiometer adaptation the general screen tension and stencil tension measurement. Screen printing stencil tension meter 7-36N/CM suitable measurement range to provide reliable, simple and quick and full mesh tension measurement measuring range
7-50N/CM suitable for high tension silk screen stencil and SMT Stencil measurement, high accuracy, is the ideal tool for making for precision stencil and stencil essential. Measurable warp and weft, the average points of latitude and longitude lines, electronics, CDs, circuit boards, SMT stencil dedicated high demand. Exempt and can be carried by hand or touch measurement error.
Tensiometer For Mesh Stretching
|
Mesh Type |
Print Duties Type
|
Tension Force(N/cm) |
|
Super intensity silk mesh |
Circuit Board And Quality Scale Plate |
16.0-20.0 |
|
High intensity silk mesh |
Multiple colors CMYK overprint machine |
16.0-20.0 |
|
High precision silk mesh |
High precision multilayer circuit board |
25.0-30.0 |
|
High precision polyester silk mesh |
Multiple colors or CMYK overprint |
8.0-12.0 |
|
Common polyester silk mesh |
Level off objects |
8.0-12.0 |
The most common printing ghosting, color misregistration, ink streaking phenomenon, tension is uneven performance, so The Tensiometer you make chromatograph, the precision version outlets important tool to
Tensiometer tension monitoring and control Stretching is the Stretching process an integral part of the tension measurement, high precision tension the platemaking and overprint the key. Tension meter is easy to operate and easy to read data error is small and high accuracy tension meter is to measure the traction screened under tension between its internal body contact with fixed screen size of the instrument. Tension measurement units in N / cm. The tension can also be represented with relative values. Cm tension meter is represented with a relative value of a tension is screen sinking depth as a value (mm) to calculate their own weight so that, by the tension meter, a tension value can be obtained directly from the indicating plate, or indirectly from the control panel, get. Tension meter the important detection equipment for testing the quality of the screen printing. Platemaking requirements tension after going to the Stretching process or stretching tension measured
