Place of Origin: | China |
Brand Name: | easy |
Certification: | CE |
Model Number: | Thick Steel Cliches |
Minimum Order Quantity: | 1 PC |
---|---|
Packaging Details: | woodencase |
Delivery Time: | 3 days |
Payment Terms: | TT |
Supply Ability: | 1000PCS/Month |

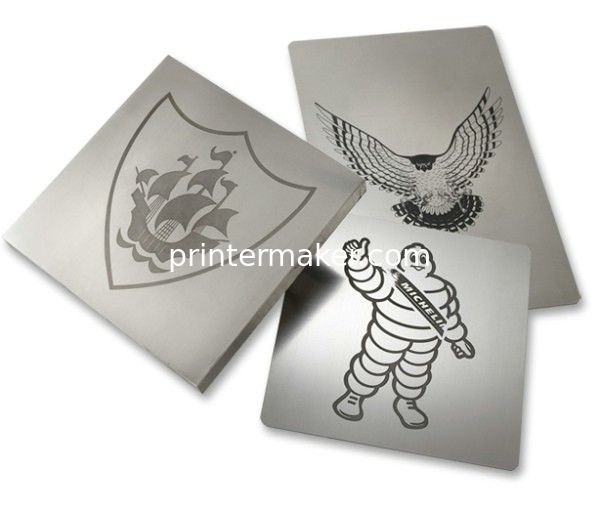

Thick Steel Cliches
Cliches Steel Material Comparison Chart
Steel Type | GCr15 | 2510(01,CrWMn) | SKD11(9Cr12MoV) |
Cliche Marks | HR | EN | D2 |
Rust Resistance Aiblity | *** | **** | ***** |
Printing Life | ** | **** | ****** |
Cliches Production Parameters
Heat Treatment Hardness | HRC 63+/-1 |
Cliche Surface Finish Roughness |
Black Surface---Ra0.1μm Bright Surface---Ra0.01μm Mirror Surface---Ra0.001μm |
Cliche Surface Parallel |
For Open Type pad printers---500:0.05mm For Cup Type Pad Printers---500:0.005mm |
Cliche Machining Thickness |
Common Thickness:9.8-10.2mm Special hickness:8mm,9mm,12mm,13mm,15mm Other thickness can be customized |
Cliche Plate Common Size |
70*140mm,75*100mm,75*150mm,75*200mm… 100*100mm,100*150mm,100*200mm,100*215mm,100*250mm.. 150*150mm,150*300mm,150*350mm… 200*200mm,200*500mm,200*550mm… Other size can be customized |
Cliche Machining Size | Any special size cliches can be made to order |
The surface parallel of all EASY steel plates are apply to both the open and cup pad printers.
