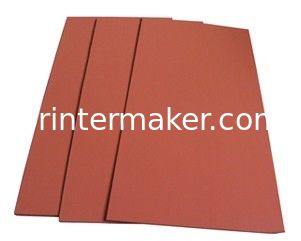

Hot Stamping Silicon Rubber Sheets

Product Details:

Place of Origin:	China
Brand Name:	easy
Certification:	CE
Model Number:	Hot Stamping Silicon Rubber Sheets

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Packaging Details:	woodencase
Delivery Time:	3 days
Payment Terms:	TT
Supply Ability:	1000PCS/Month

Contact Now

Detailed Product Description

hot stamping silicon rubber sheets'>Hot Stamping Silicon Rubber Sheets
Payment Terms:TT

Usage:
Gilding on words and Drawing which protruted on the surface of objects , For an exsample( car plate number).

Technical Parameter:
Temperature range: 250-300℃；
Hardness:40－80；
Coefficient of heat conductivity:1-1.2therm/M.H.Degree；
Thickness of silicon rubber: 3,4,5mm,10mm1.5mm;
Thickness of Aluminium base: 10,8,5,3,2,1,0.5mm;
Standard size:300×600mm;
Colour:red,white.

Production Advantage:
Heat conductivity good;
Multi-hardness of silicon rubber layer to be choice;
Multi-thicness of silicon rubber layer to be choice;
Particular vulcanization process ensure long useful life;
High-strongly splicing make adhesive ability well;
Multi-thickness of aluminium base to be choice;
Deformation easily rebound elasticity;
Planeness good make pressure even.

Use Method:
Cut to fit size according to stamping area;
Adhere it to stamping head with high temperature paper, high temperature glue; screw;
Start stamping and take a test.

Storage:Keep flat on shady place without incompression

Shelf life:5 years.

Printing Plate type:Silicon rubber plate

No	Name	Size	Hardness	Thickness of Base
01		300×600×1.5mm	40～90	0.5, 1,1.5,2,3,5,8,10mm
02		300×600×3mm	40～90	0.5, 1,1.5,2,3,5,8,10mm
03		300×600×5mm	40～90	0.5, 1,1.5,2,3,5,8,10mm
04		300×600×8mm	40～90	0.5, 1,1.5,2,3,5,8,10mm
05		300×600×10mm	40～90	0.5, 1,1.5,2,3,5,8,10mm
