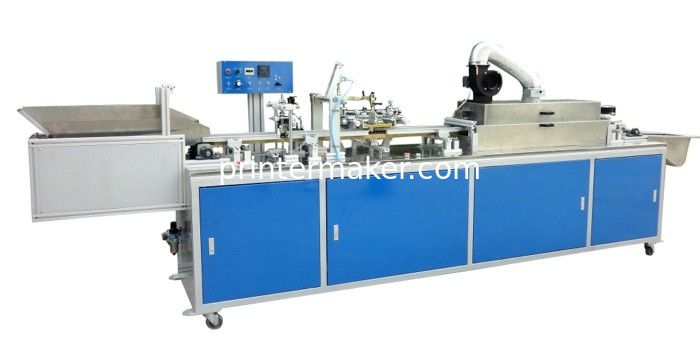

Upgraded Automatic Pen Screen Printing Machine
Upgraded with double flaming system, double direction change devises, 2 Printing stations.
Parameters:
1: Printing color: 1color, 2 colors
2: Printing Diameter: Ф3 to Ф20mm
3: Max. Printing Length: 40-220mm
4: Printing stroke: 20 to 80mm (adjustable)
5: Max. Conical: 3°
6: Blank length on two ends (can not be printed): 5mm
7: Printing Speed: 6500pcs/hr (60-110pcs/Min)
8: Power supply: 220V , 50/60HZ , 4.5KW
9: IR Heating Length: 1200mm
10: Gross Weight: 850kg
11: Dimension: 5000×790×1350 mm
This auto screen printer on pens is upgraded with automatic feeding, 2 direction change devices and position fix devices, 2 flaming treatment, cooling fan, double station screen printing stations, non-class speed adjust, IR drying system, cooling fan, automatic unloading system.
Features:
1: Automatic uploading with hopper.
2: With flaming treatment, it is fitting for all those PP, PET, PE materials substrates for increasing the ink adhesion.
3: The direction change devices and position fix are fitting pens with clip and allow pens free of same direction.
4: Fully automatic printing system. One person could supervise several sets of same machines.
5: IR drying system is for heating and drying the ink for assuring the perfect ink adhesion. And it is free of any further drying process.
6: Fully electrical driving system, no compressor air required. Control by Inverters for steady moving, ensure for good affect printing quite working environment and most working stability.
7: IR drying system (UV curing system is optional); cooling before unlading.
8: Automatic unloading with unloading slot.
9: Working capacity has been increased double based on the single system machine.
Description:
This machine is fitting for all those pen rods, pens with clip, round type plastic or metal pens, small round tubes, medical syringes, chopstick, eyebrow pen, cosmetics lipstick tube in PET, PP, PE material with the good printing quality, fast speed, easy to adjus

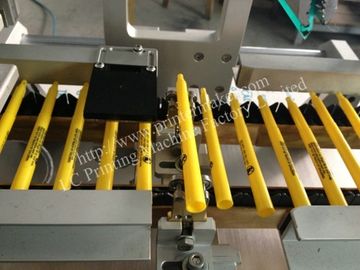

Printing Samples:

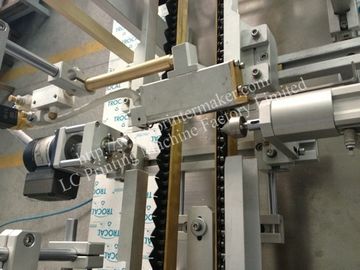

Machine Details:
