    Product Details:

    Place of Origin: China
    Brand Name: easy
    Certification: CE
    Model Number: ASH-107

    Payment & Shipping Terms:

    Packaging Details: woodencase
    Delivery Time: 3 days
    Payment Terms: TT
    Supply Ability: 1000PCS/Month
    Minimum Order Quantity: 1 PC
    Contact Now
    Detailed Product Description

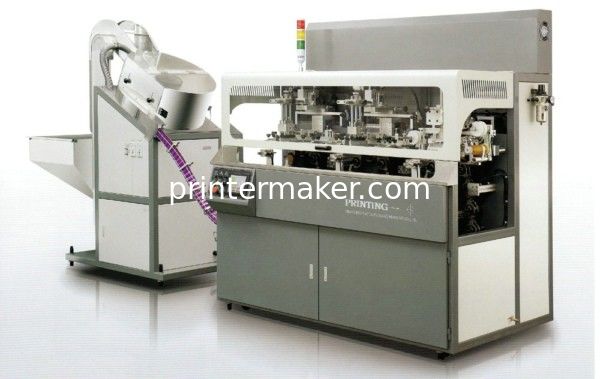

    Fully Automatic Chain-type Multicolor Screen Printing And Hot Stamping Machine
    Parameter:
    1: Printing speed: 3000pcs/hr
    2: Printing size: Caps diameter Φ15-34mm length 25-60mm
    Bottle dia Φ20-65mm length 25-150 mm
    3: Compressed air: 0.6MPa
    4: LPG: 0.15MPa (flameing)
    5: Power supply: 380V, 3-PHASE, 50HZ
    6.Gross Weight:1200KG
    7.Packing Size:300*133*220CM

    Features:
    1: Fitting for those glass bottles and caps in multi colors printing and free of positioning mark.
    2: Could be flexibly combine with 3 screen printing stations and 1 hot stamping head.
    3: The IR heating treatment system and flame treatment system (optional)
    4: Machine is with UV system and mechnical loading system
    5: Automatic feeding system for caps (optional)
    6: PLC control on each printing head, each UV system, flaming system, ejector, safety alarm
    7: In put and out put maintainence, setting control, language selet function
    8: Slipt system for assuring over color print within 5C.
    9: SMC Air Valve, Panosonic Inverter, Omron PLC system, Germany Schneider Electric component.

    Application:
    This machine is the newly developed fully automatic chain-type multicolor screen printing machine and Hot Stamping Machine. It is mainly for screen printing and hot stamping cylinder objects without positioning mark. Optional combination offers multicolor screen printing and hot stamping.

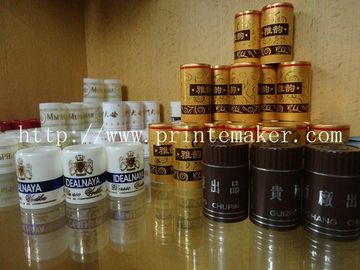

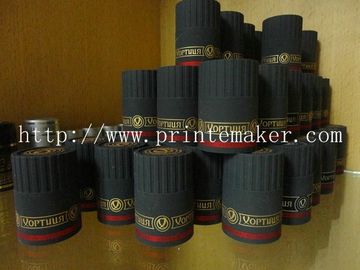

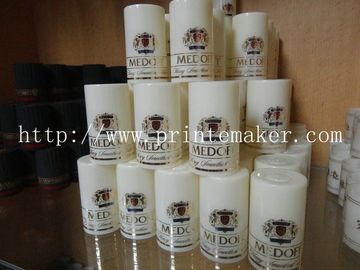

    This machine is fitting for all those round glass, plastic and metal cups, bottles, caps, tubes in multi color's screen printing and hot stamping quality.
