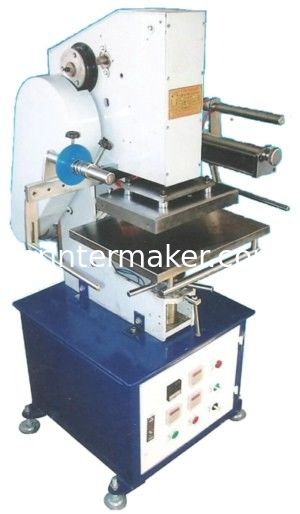

Electric and Mechanical Hot Stamping Machine
Specifications︰
H-TC-156
1. Hot plate area:156× 300 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000－3000 Kg
4. Up and down distance:45mm
5. Heat wattage:1000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
H-TC-190
1. Hot plate area:190 × 270 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000－3000 Kg
4. Up and down distance:45mm
5. Heat wattage:1000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
H-TC-210
1. Hot plate area:210 × 290 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000－3000 Kg
4. Up and down distance:45mm
5. Heat wattage:3000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
H-TC-250
1. Hot plate area:250 × 300 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000－3000 Kg
4. Up and down distance:45mm
5. Heat wattage:1000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
Advantages:
1.Vertical Pressure design ensures big pression;
2.Capable of adjusting the stamping pressure, the temperature and the speed;
3.Worktable slight adjustment ensure precision stamping;
4.The height of the stamping head adjustable ;

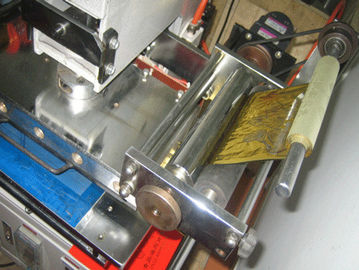

5.Automatic foil feeding and collecting.
6.Photecell installed to finsih heat transfer process.
7. Perfect for embossing quality.
Machine Fittings:
1. Silicon Rubber Edition 1 Pic
2. High temperature paper 1 inch
3. Stamping foil 1 roller
4. English operation instruction one Pic
5. Tool box 1 pic.
