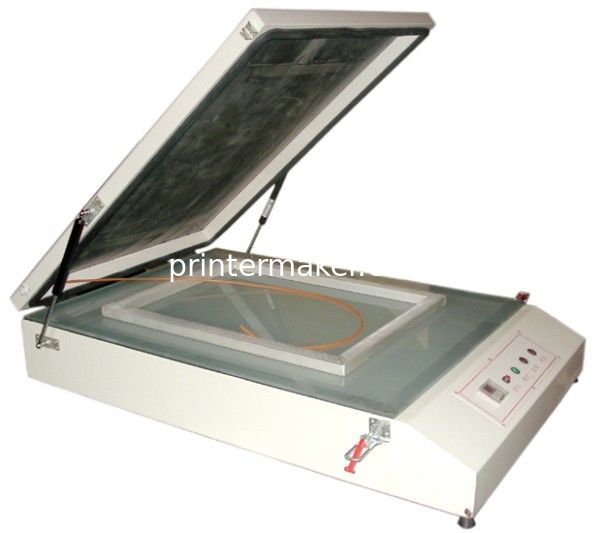

Desktop Vacuum UV Screen Exposure Units Specification:
Max. Frame Size:600*900 mm

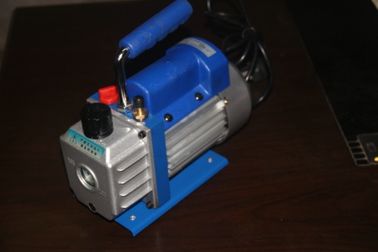

Vacuum Pump:1.5L

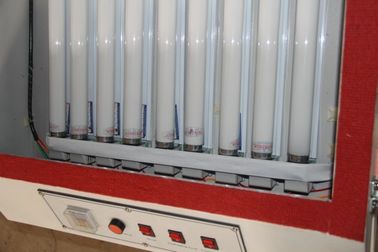

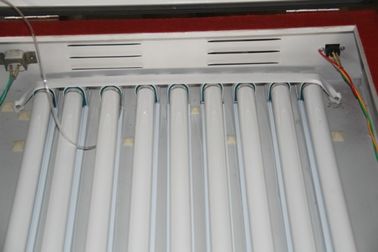

Number of UV Lamp:9 PCS
Voltage:220v/110v
UV Lamp Power:270w
Vacuum pump power:120w
Total Power:390W
Machine Dimensions(L*W*H):1200*750*300mm
Packing Size: 1250*900*310mm
Net Weight: 50kg
Gross Weight:70KG
Application:
It is a special desktop style UV exposure unit , easy operate & low cost use for silk screen plate ,Exposure fast ,save ,UV lampes long life,Automatic exposure and vacuum sorption,which controlled by a high precision timer.
