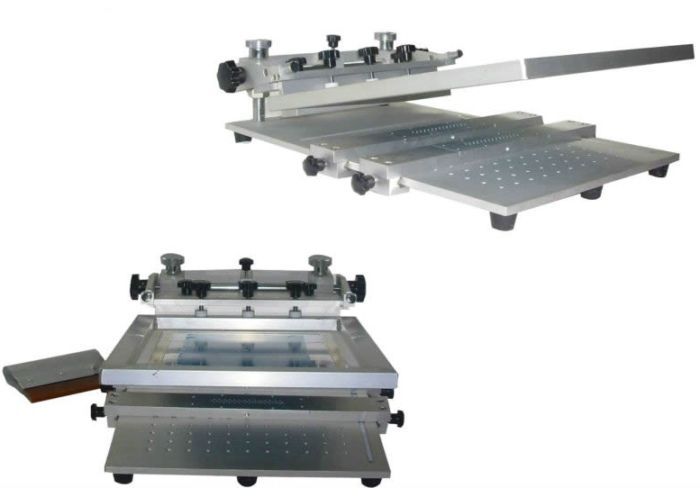

SMT Manual High Precision Screen Printing Machine SH-SMT3040 is a manual screen printing machine with high precision to achieve printing on PCB boards with success. Main Features: 1.Adjusting stencil frame. 2.Template holder. 3.Board support screw. 4.Holder locking hand-wheel Technical standards: 1.Printing size:Max.300*400mm 2.Applied Area: silk screen and steel-mesh 3.Net Weight: 12.5Kg 4.Gross Weight:20KG 4.Machine Size:700mm*600mm*350mm 5.Packing Size:76*56*25cm
1.Adjust button at vcrtical Adjust button at vcrtical:adjust the total stcncil frame vertical height 2.Template holder Template holder:holder thc steneil frame 3.Working station(seat) Working station(seat):work place 4.Lock block at crosswise lock block at crosswis: to fix the board by length 5.Board fixing supporter Board fixing supporter:to fix the board by width 6.Board support screw Board support screw:the screw can be moved and fin the supporter in the board 7.Support screw fixing hole support screw fixing hole:many holes is easy to fix the board in any place. 8.Board holder Board holder. the fix the board on thc both sides of thc board 9.Holdcr Locking hand-wheel Holder Locking hand-wheel:adjust the board holder in the machine 10.Template locking screw Template locking screw:ajust that according to the height of the stencil frame 11.Adjust button at lengthwise Adiust button at lengthwise:adjust the stencil frame in length direction 12.Adjust button at level Adjust button at level:adjust the stencil frame in width direction 13.Locking hand-wheel at lengthwise Locking hand-wheel at lengthwise: fix the vertical direction 14.Locking hand-wheel at crosswise Locking hand-wheel at crosswise:fix the lcvel direction
